Arrow Anchor Glue-In Bolt
Stainless Steel

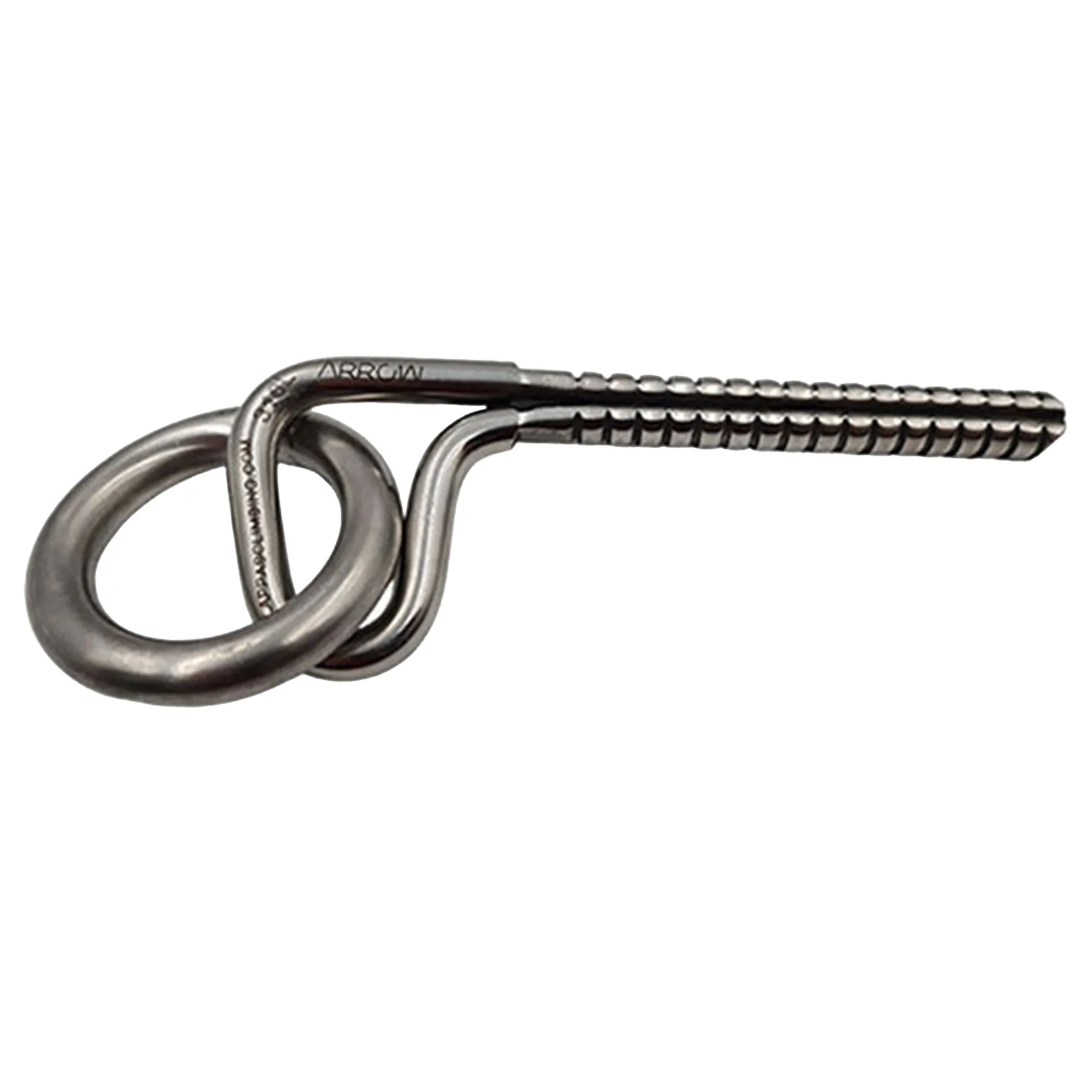

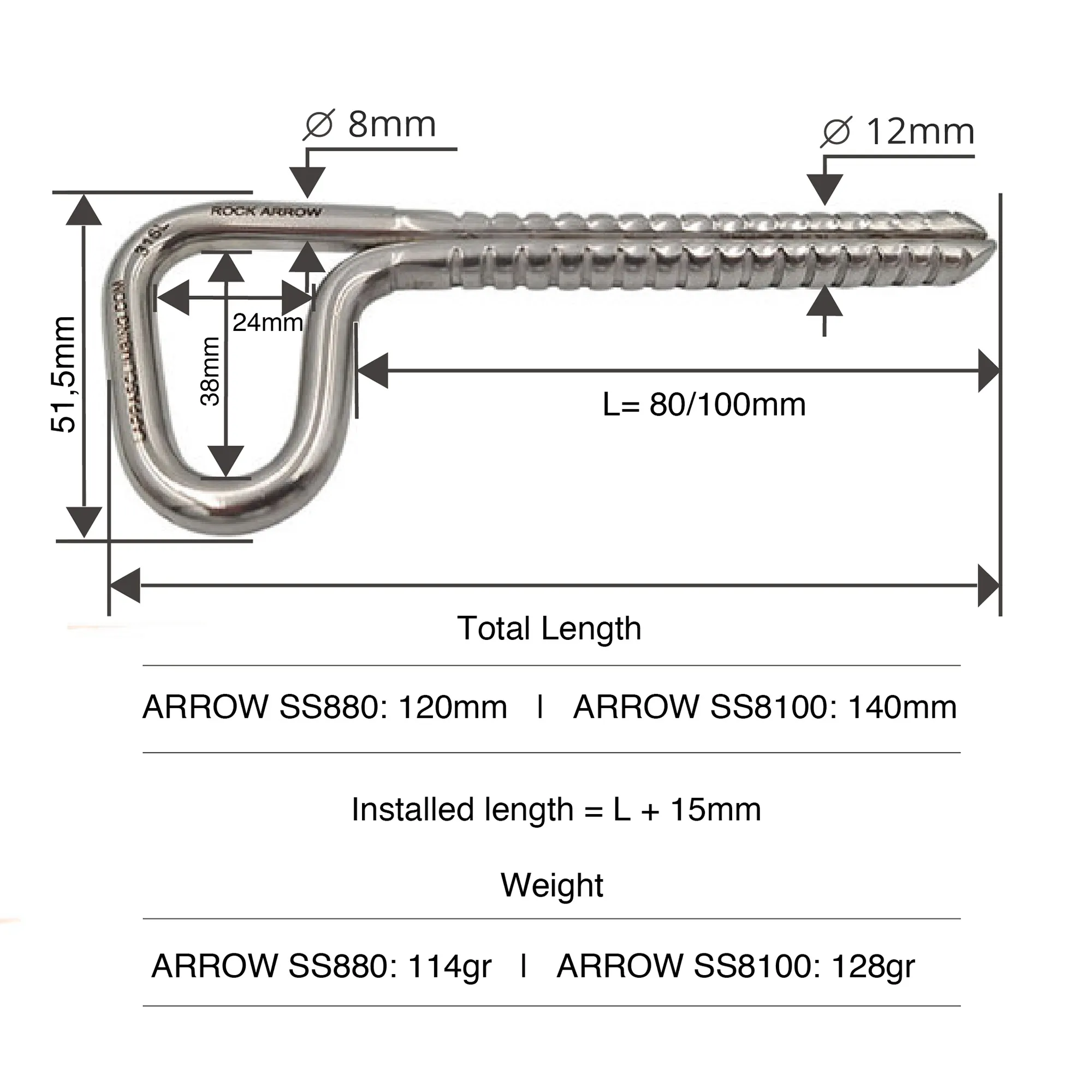

The Arrow SS anchor glue-in bolt, has got its name from its shape as it resembles an arrow. It is made of Stainless steel 316L with a maximum body diameter of 12mm, it fits in a 1/2 inch hole (for a tight fit) but is designed to fit in a 14mm hole.
Its innovative design with its large width eyelet allows the use of more than two carabiners and the body’s wavy surface, ensures that it will not slide out. The product undergoes a passivation process, for the purpose of the removal of free iron or other foreign material. In addition, it is subject to an extra process of polishing-finishing to maximize corrosion resistance.
Arrow SS, has been tested and certified according to the latest standards EN 959: 2018 & UIAA by an accredited laboratory.
Lappas S.A. has a Management System as per EN ISO 9001:2015 Certificate and it is one of the 70+ UIAA SAFETY LABEL HOLDERS.
Â
Titanium
The Arrow Ti anchor glue-in bolt, has got its name from its shape as it resembles an arrow. It is made of Titanium Gr2 with a maximum body diameter of 12mm, designed to fit in a 14mm hole. Its innovative design with its large width eyelet allows the use of more than two carabiners and the body’s wavy surface, ensures that it will not slide out.
The product undergoes a passivation process (ASTM B600-11), in order to remove iron and other surface contaminants. In addition, it is subject to an extra process of polishing-finishing to maximize corrosion resistance.
The Arrow Ti has been tested and certified according to the latest standards EN 959: 2018 & UIAA by an accredited laboratory. Lappas S.A. has a Management System as per EN ISO 9001:2015 Certificate and it is one of the 70+ UIAA SAFETY LABEL HOLDERS.
Â
Additionally, this product holds a UIAA V4 Safety label, which is the latest revision to the UIAA's 123 Rock Anchor certification. This was a major update to the UIAA standard for rock anchors, focusing on stress corrosion cracking (SCC) caused by atmospherically induced factors.
Â
Original: $9.13
-70%$9.13
$2.74Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Stainless Steel
The Arrow SS anchor glue-in bolt, has got its name from its shape as it resembles an arrow. It is made of Stainless steel 316L with a maximum body diameter of 12mm, it fits in a 1/2 inch hole (for a tight fit) but is designed to fit in a 14mm hole.
Its innovative design with its large width eyelet allows the use of more than two carabiners and the body’s wavy surface, ensures that it will not slide out. The product undergoes a passivation process, for the purpose of the removal of free iron or other foreign material. In addition, it is subject to an extra process of polishing-finishing to maximize corrosion resistance.
Arrow SS, has been tested and certified according to the latest standards EN 959: 2018 & UIAA by an accredited laboratory.
Lappas S.A. has a Management System as per EN ISO 9001:2015 Certificate and it is one of the 70+ UIAA SAFETY LABEL HOLDERS.
Â
Titanium
The Arrow Ti anchor glue-in bolt, has got its name from its shape as it resembles an arrow. It is made of Titanium Gr2 with a maximum body diameter of 12mm, designed to fit in a 14mm hole. Its innovative design with its large width eyelet allows the use of more than two carabiners and the body’s wavy surface, ensures that it will not slide out.
The product undergoes a passivation process (ASTM B600-11), in order to remove iron and other surface contaminants. In addition, it is subject to an extra process of polishing-finishing to maximize corrosion resistance.
The Arrow Ti has been tested and certified according to the latest standards EN 959: 2018 & UIAA by an accredited laboratory. Lappas S.A. has a Management System as per EN ISO 9001:2015 Certificate and it is one of the 70+ UIAA SAFETY LABEL HOLDERS.
Â
Additionally, this product holds a UIAA V4 Safety label, which is the latest revision to the UIAA's 123 Rock Anchor certification. This was a major update to the UIAA standard for rock anchors, focusing on stress corrosion cracking (SCC) caused by atmospherically induced factors.
Â
